Products

Here you will find a comprehensive list of our products complete with documentation, videos and support tutorials.

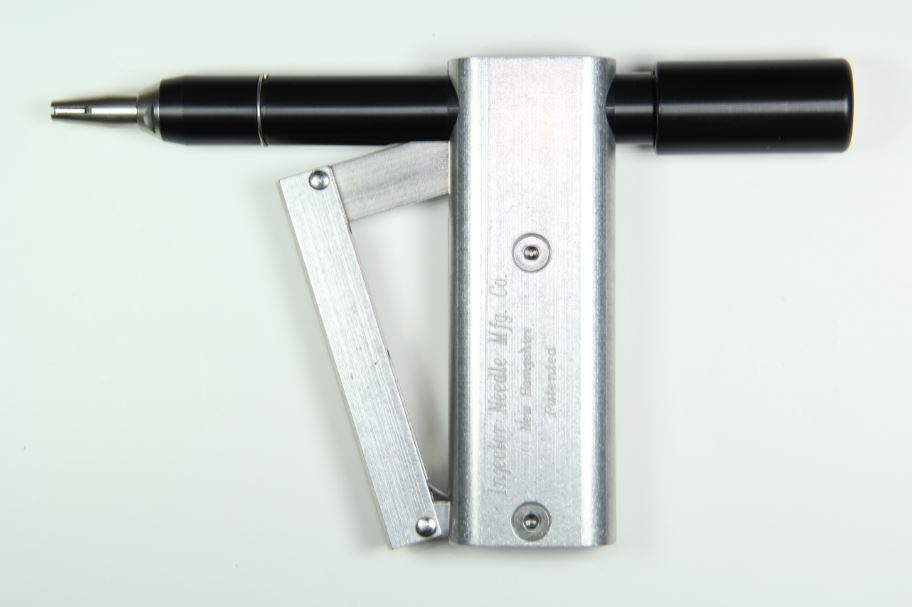

Injector Needle Driver™

The patented Injector Needle Driver™, the first needle driver of its kind. It features a full comfortable hand grip, stainless steel nose, powerful driving action and a hands free spring clip to keep Injector Needles securely in place.

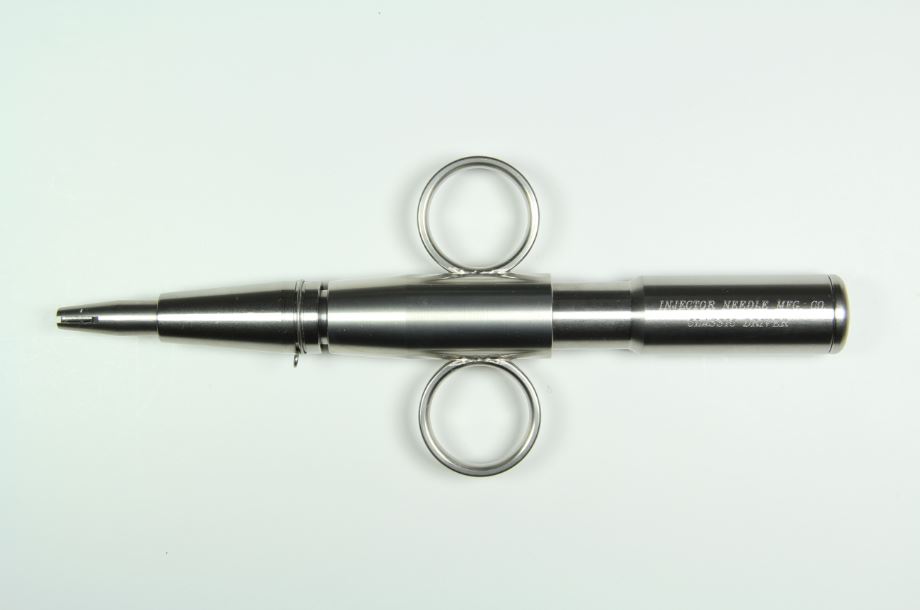

Classic Injector Needle Driver II™

A classic design with new technology. The Classic Injector Needle Driver™ features all stainless steel construction and Posi-Lock™ technology. Unique design makes positive engagement with hammer eliminating a long history of problems with this design.

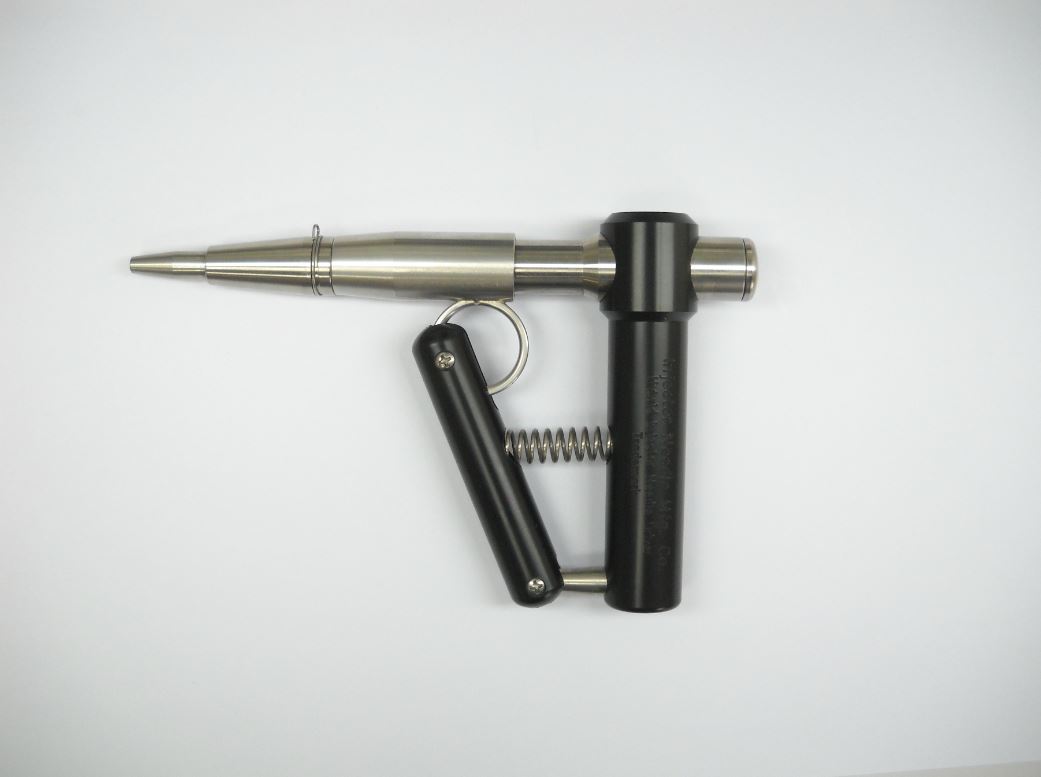

Hybrid Injector Needle Driver™

This unique design brings forth the best of Instrument Design Needle Drivers. It combines the four finger grip of the Injector Needle Driver™ and the Posi-Lock™ technology of the Classic Injector Needle Driver™

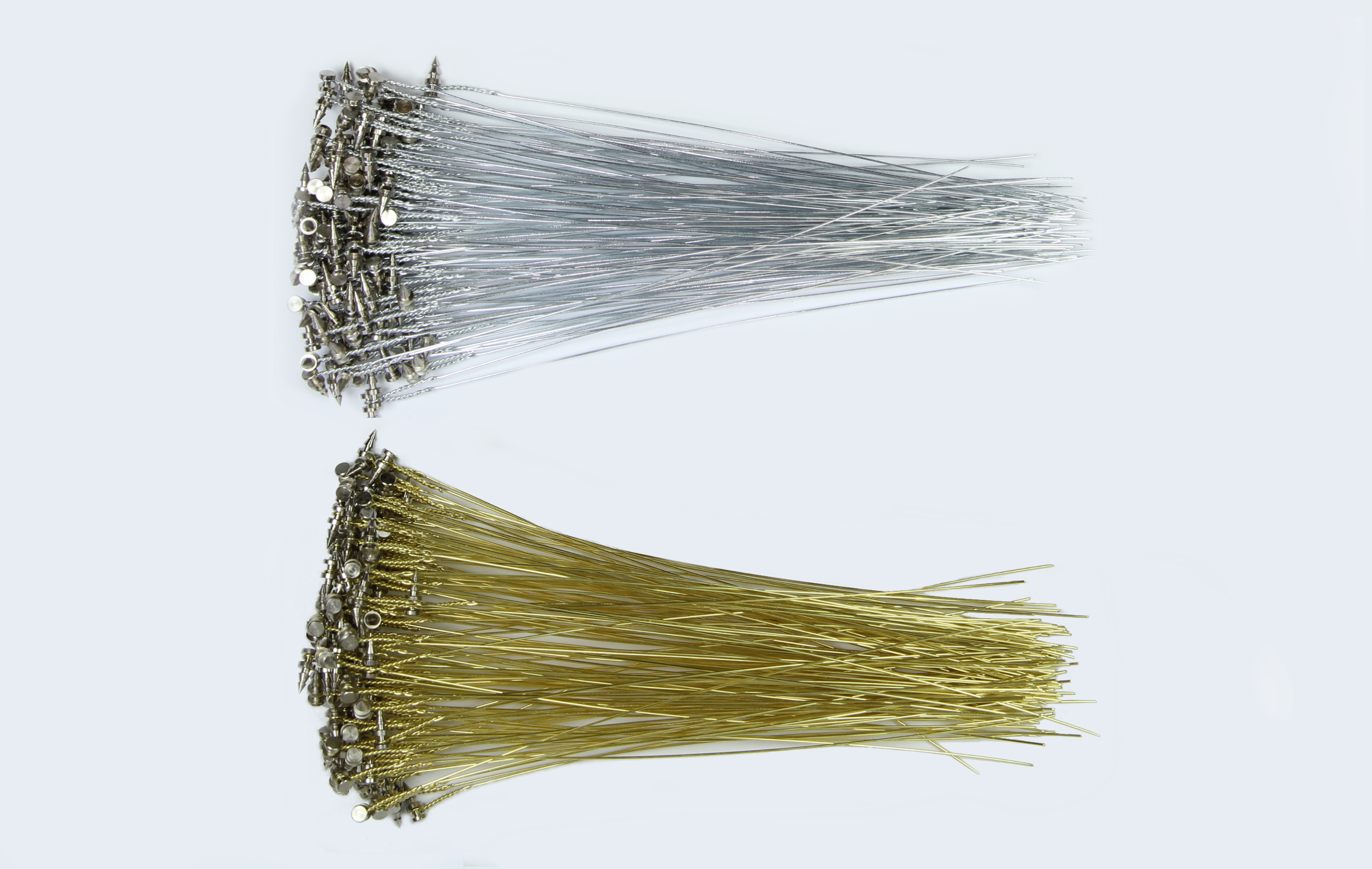

Injector Needles

Genuine Injector Needles, by Injector Needle Manufacturing Company. Available in brass or steel.

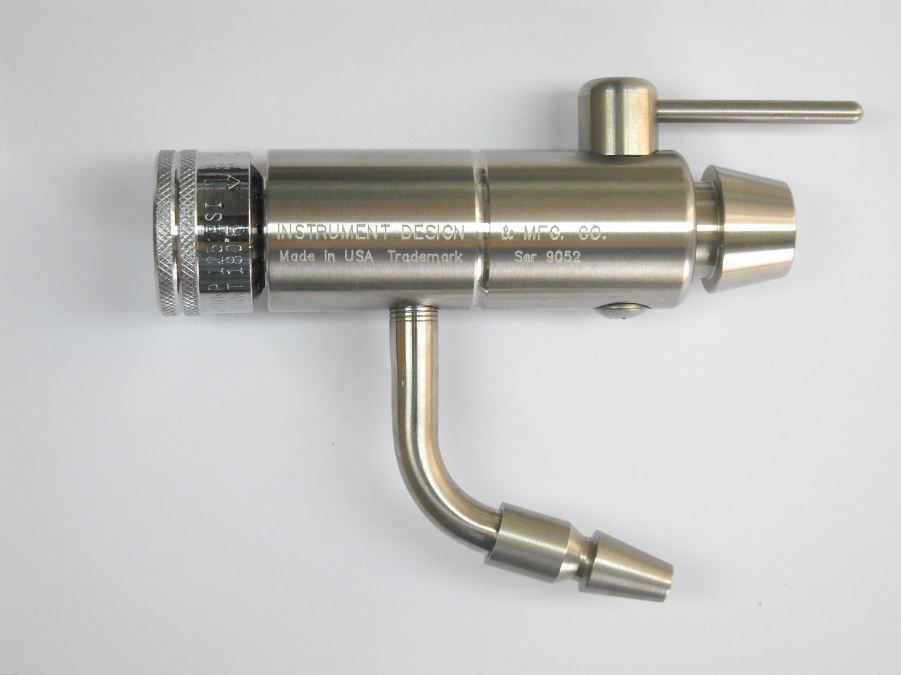

Vacua Hydro Aspirator™

Made entirely of stainless steel with a chrome plated brass backflow preventer, the Vacua Hydro Aspirator™ is designed for maximum efficiency providing greater vacuum with minimum use of water. Easily attached to any faucet with a garden hose thread.

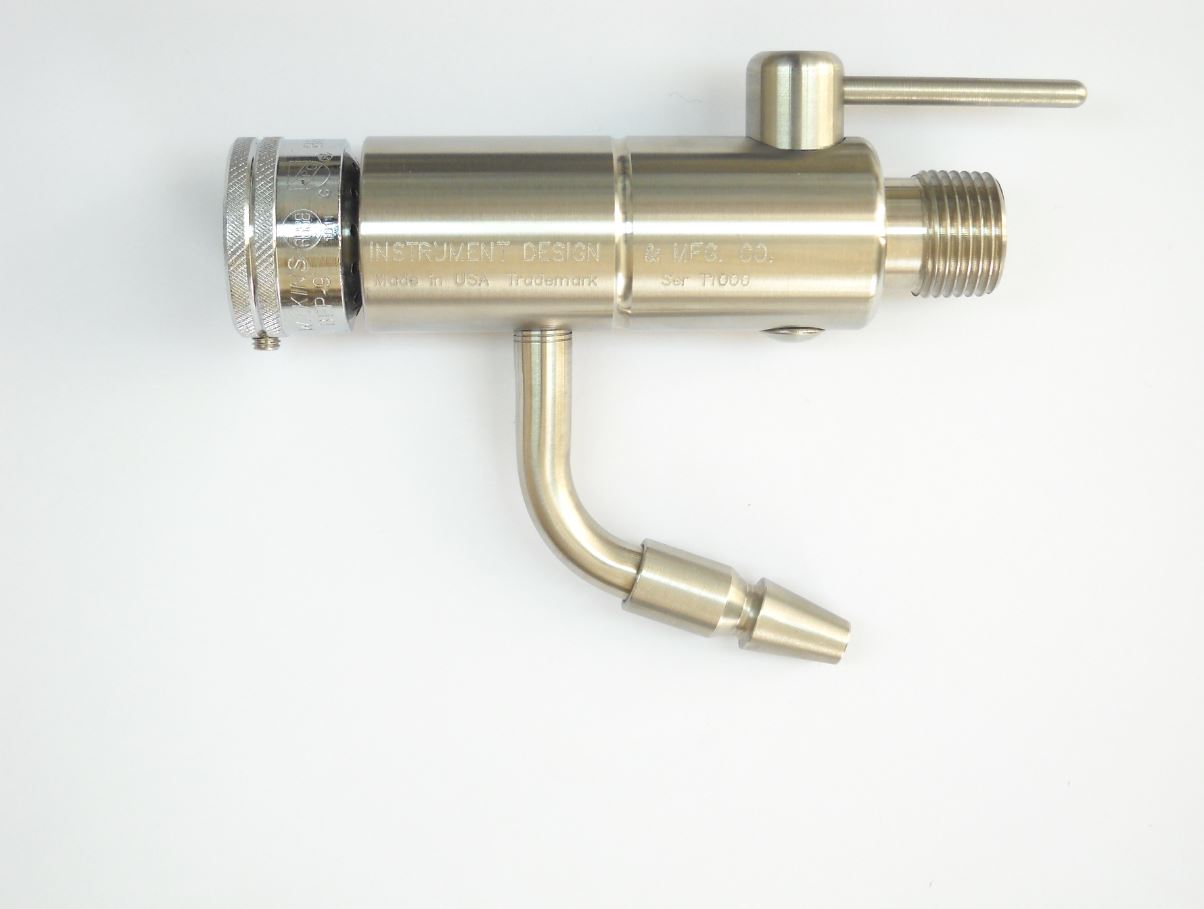

Vacua Hydro Aspirator NPT™

Made entirely of stainless steel with a chrome plated brass backflow preventer, the Vacua Hydro Aspirator NPT™ is designed for maximum efficiency providing greater vacuum with minimum use of water. Easily attached to any faucet with a garden hose thread. Has a 1/2" NPT thread on bottom.

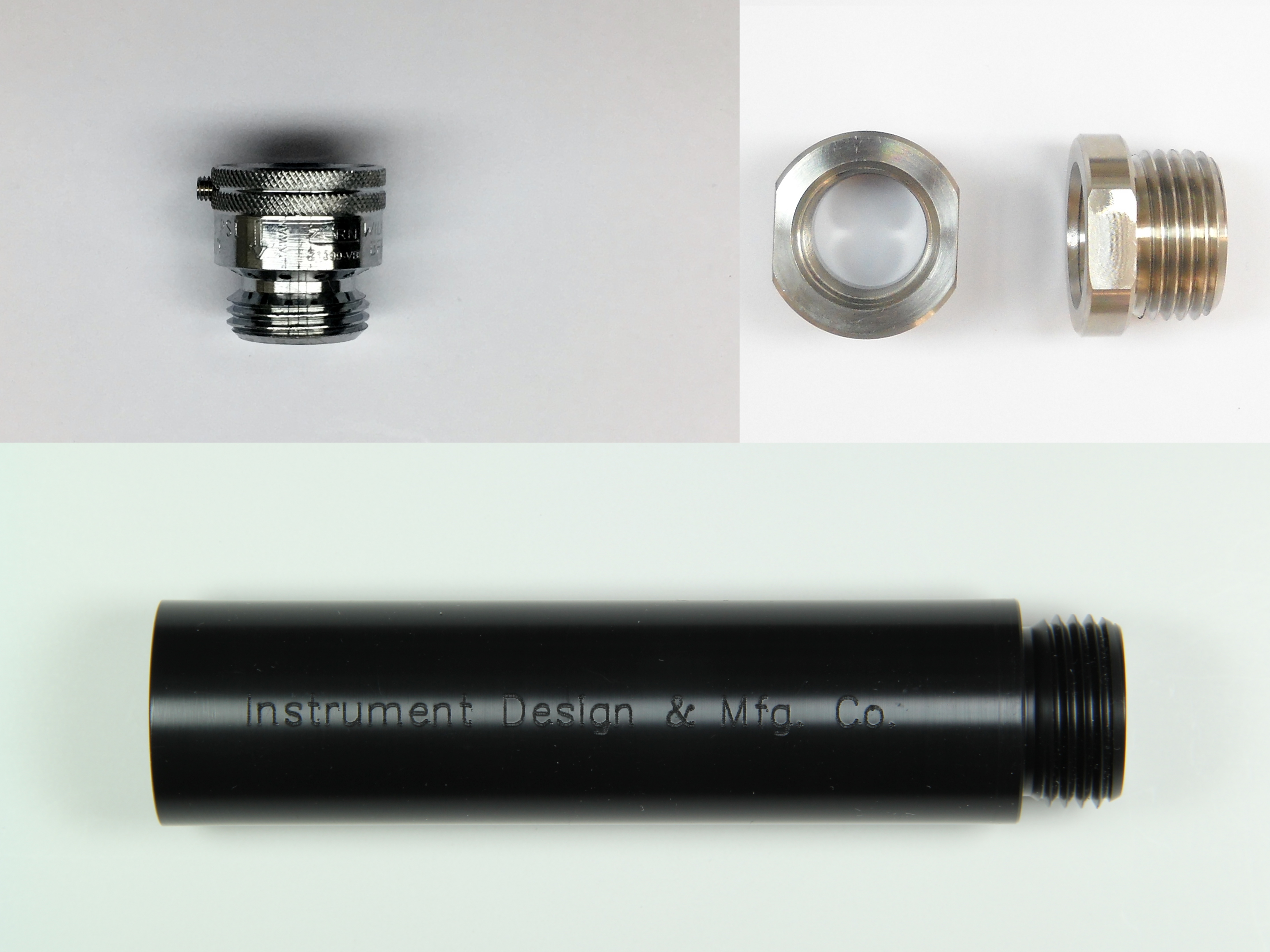

Vacua Hydro Aspirator™ Accessories

Accessories include replacement backflow preventers, inlet tubes, extensions and adapters.

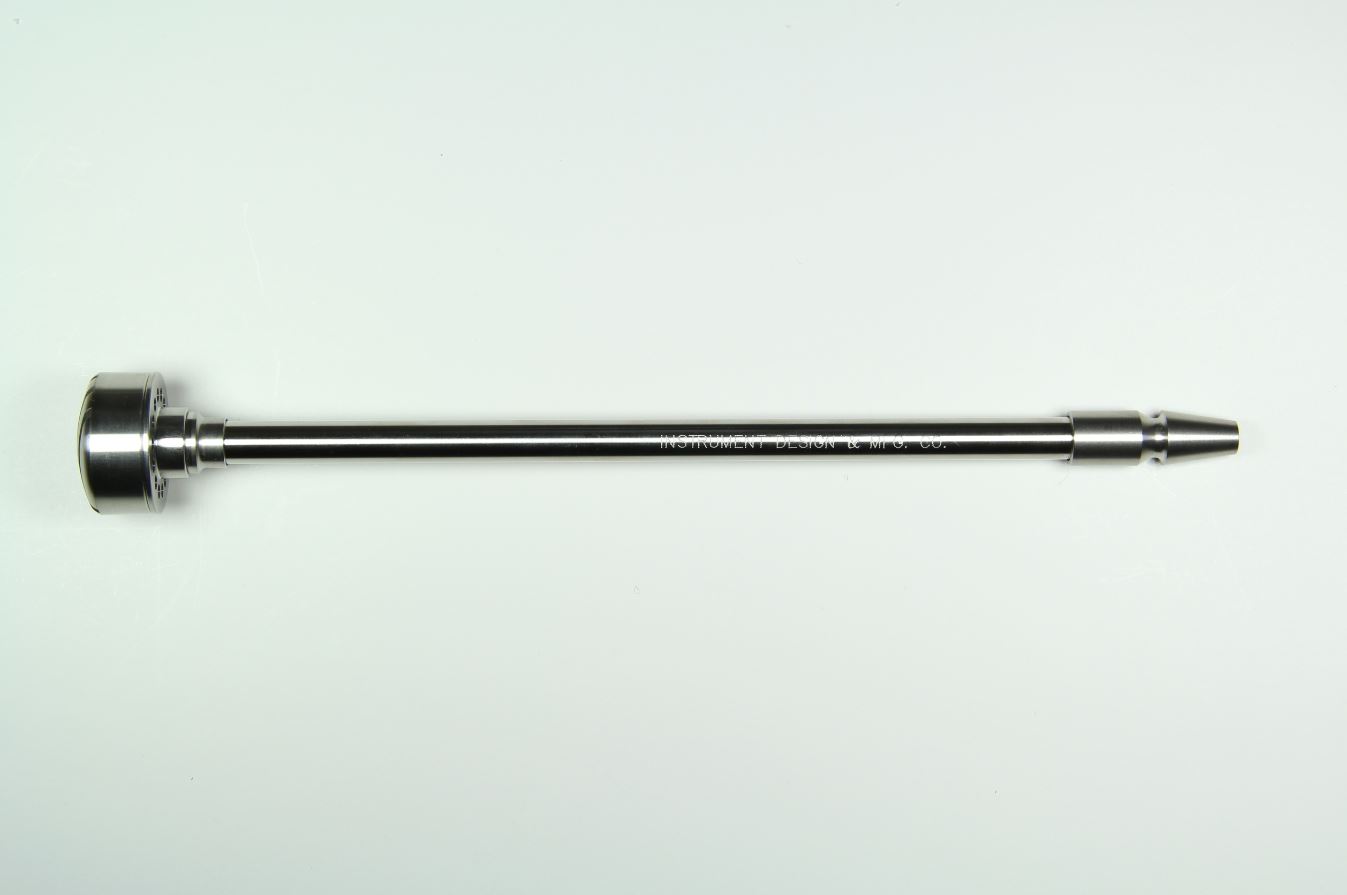

Vacua Non-Clogging Post Aspirator™

Vacua Post Aspirators™ are made entirely of stainless steel. The two piece head easily disassembles for cleaning. Available with non-clogging head or standard head. Overall length is 10 inches. Available With Slip Hub or our Male Quick Connect.

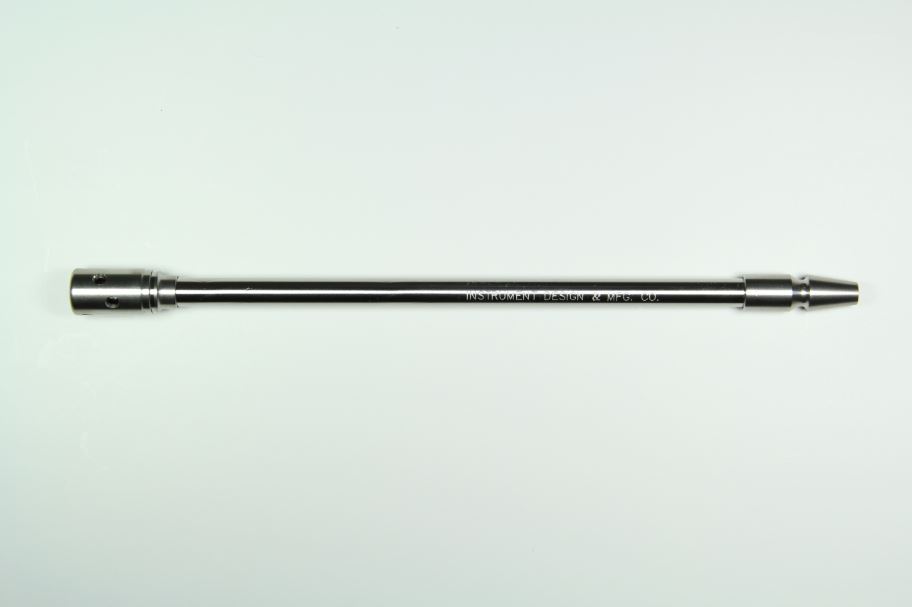

Vacua Post Aspirator™

Vacua Post Aspirators™ are made entirely of stainless steel. The two piece head easily disassembles for cleaning. Available with non-clogging head or standard head. Overall length is 10 inches. Available With Slip Hub or our Male Quick Connect.

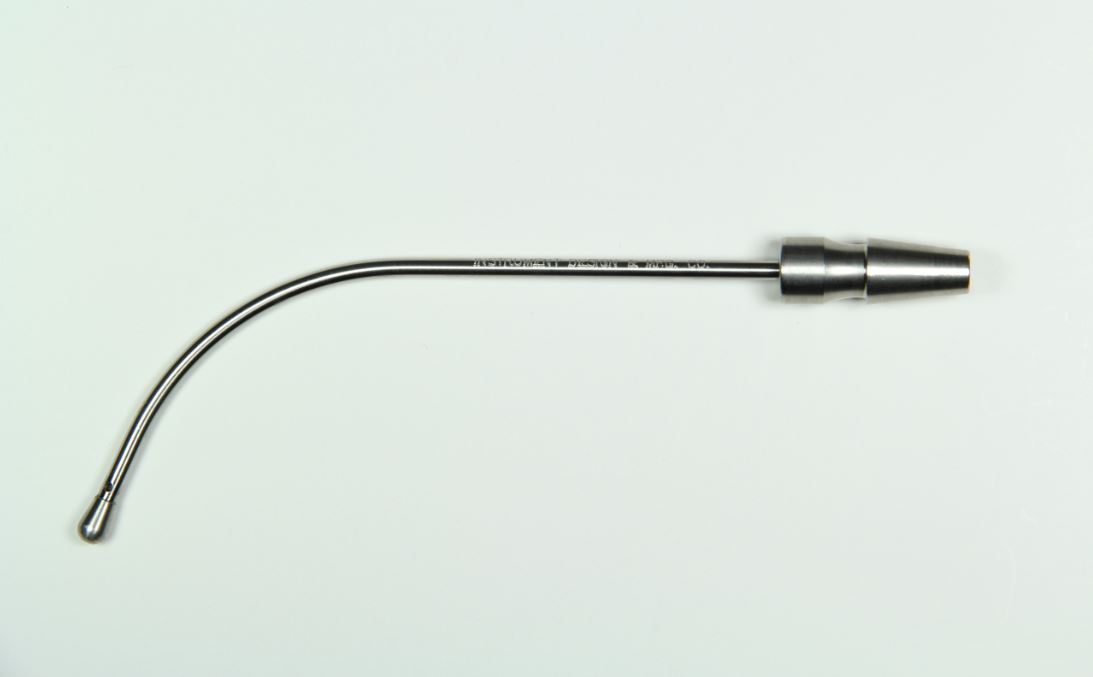

Vacua Nasal Aspirators™

Available in infant and adult sizes. Features all stainless steel construction with a smooth radius probe end. Tube has 2 side inlet holes and center end hole for efficient extraction of fluids.

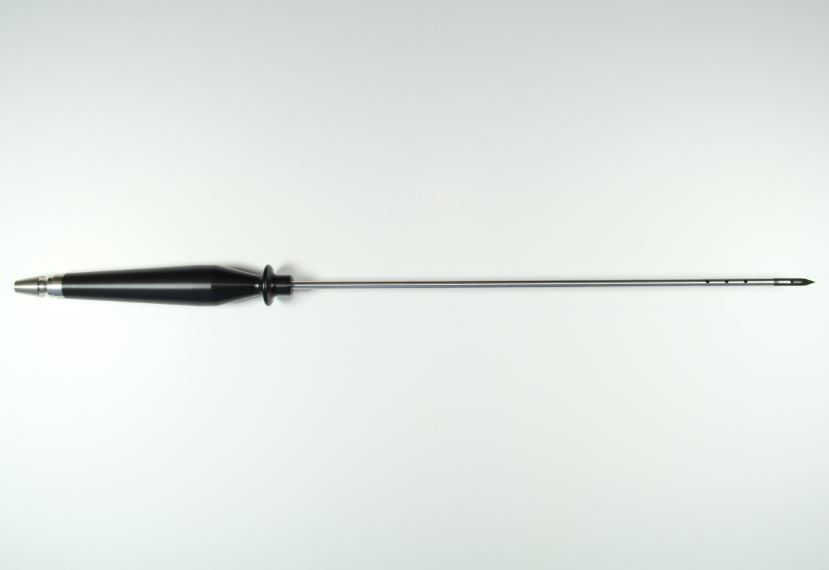

Trocars

Instrument Design Trocars feature high performance, lightweight delrin which is about 1/6 the weight of a standard metal trocar handle and a stainless steel tube which won't chip, peel or corrode. They are available in a variety of diameters and lengths.

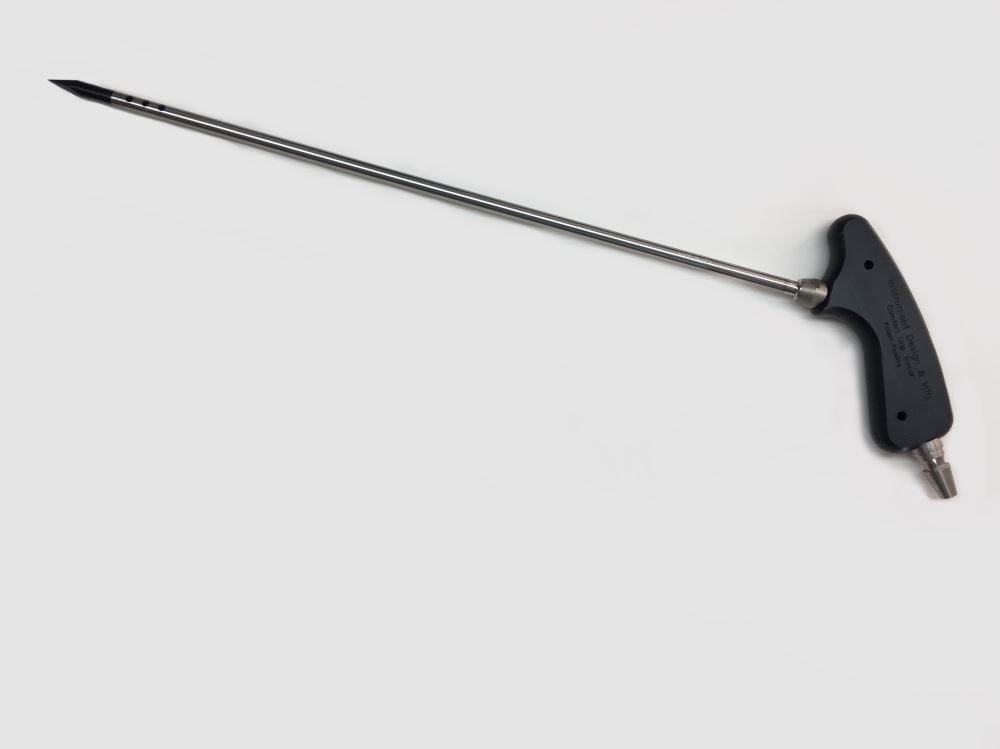

Comfort Grip Trocar™

The Comfort Grip Trocar™ is the first truly ergonomic grip on the market. The light weight delrin grip sits comfortably in the palm of your hand. This design is unlike standard grips where the fingers must be gripped tightly to securely hold the Trocar. It features a stainless steel tube which won't chip, peel or corrode. Available in 5/16" or 3/8" diameters and a variety of lengths.

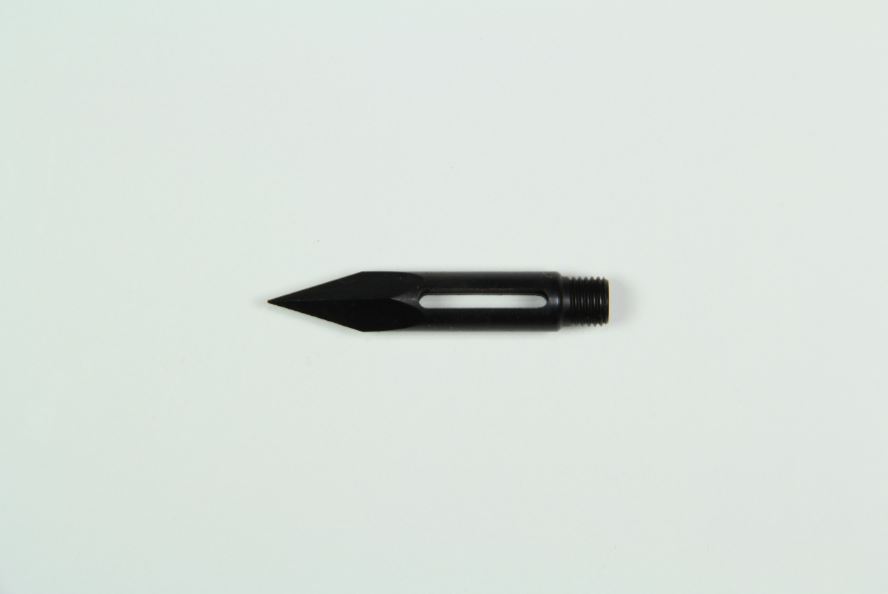

Trocar Points

Instrument Design Trocar Points feature precision machined threads, slots/holes with no chips or leftover metal and sharp uniform edges and points.

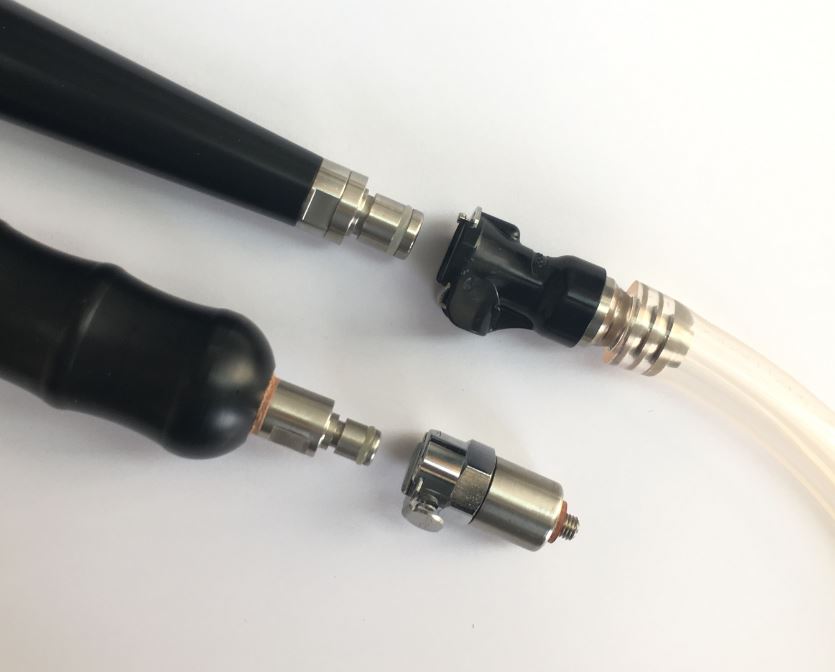

Quick Connects

Instrument Design provides Quick Connect options for aspirating as well as embalming.

Easily transfer your embalming instruments over to the Quick Connect Sysytem for faster, more efficent embalming.
For use with Vacua Aspirators, Trocars, the Hypo Valve and Arterial Tubes.

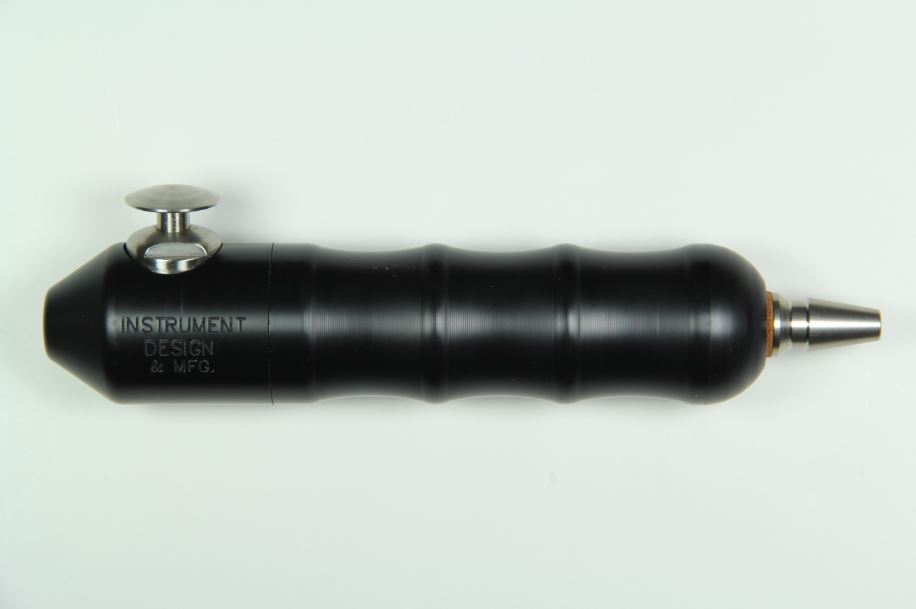

Hypo Valve & Hypo Shafts

The Hypo Valve by Instrument Design is precision machined for embalming. It features a large comfortable hand grip and a large stainless steel actuating button featuring full metering flow control.

Hypo Shafts feature stainless steel tubing and fitting with a replaceable hardened steel point. The shaft has 2 irrigation holes in addition to the point having two irrigation holes.

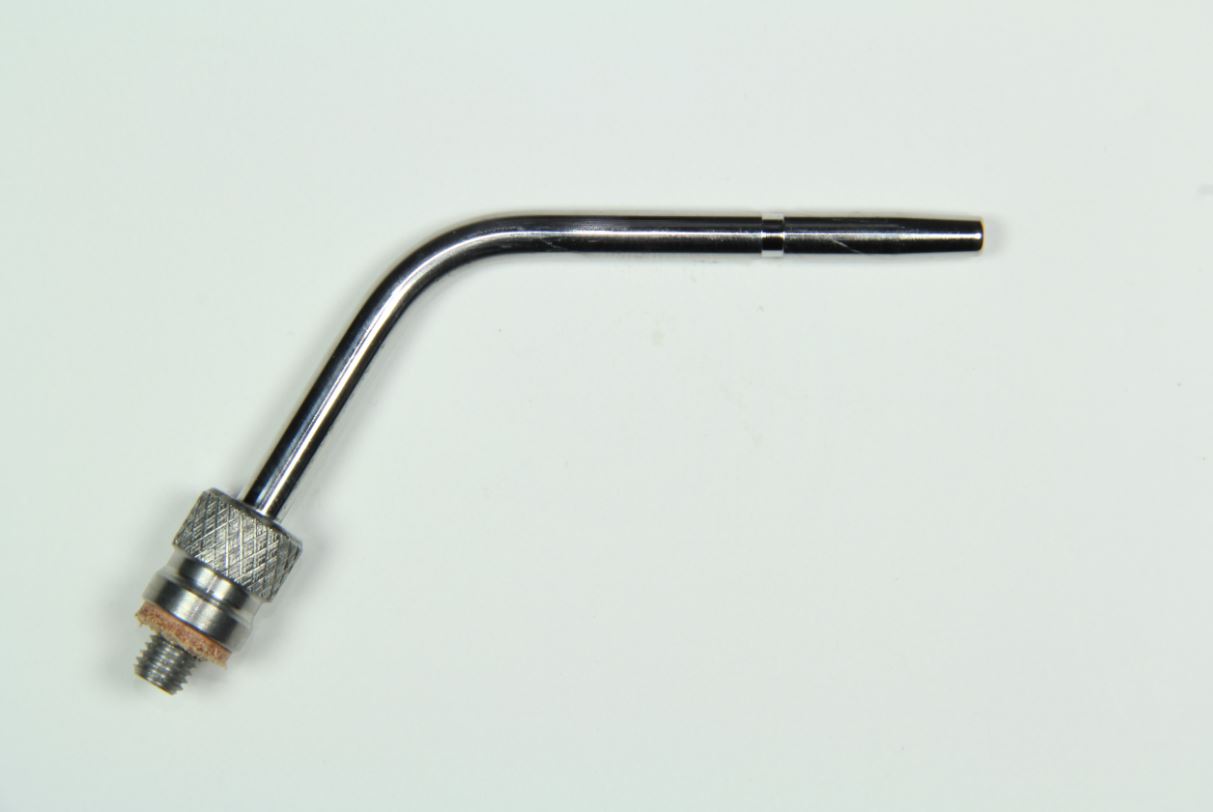

Jet Tip Arterial Tubes™

Jet Tip Arterial Tubes™ feature complete stainless steel construction. Featuring a precision straight nozzle design, tie collar or groove and quick connect capibilities, you won't find better arterial tubes anywhere else.

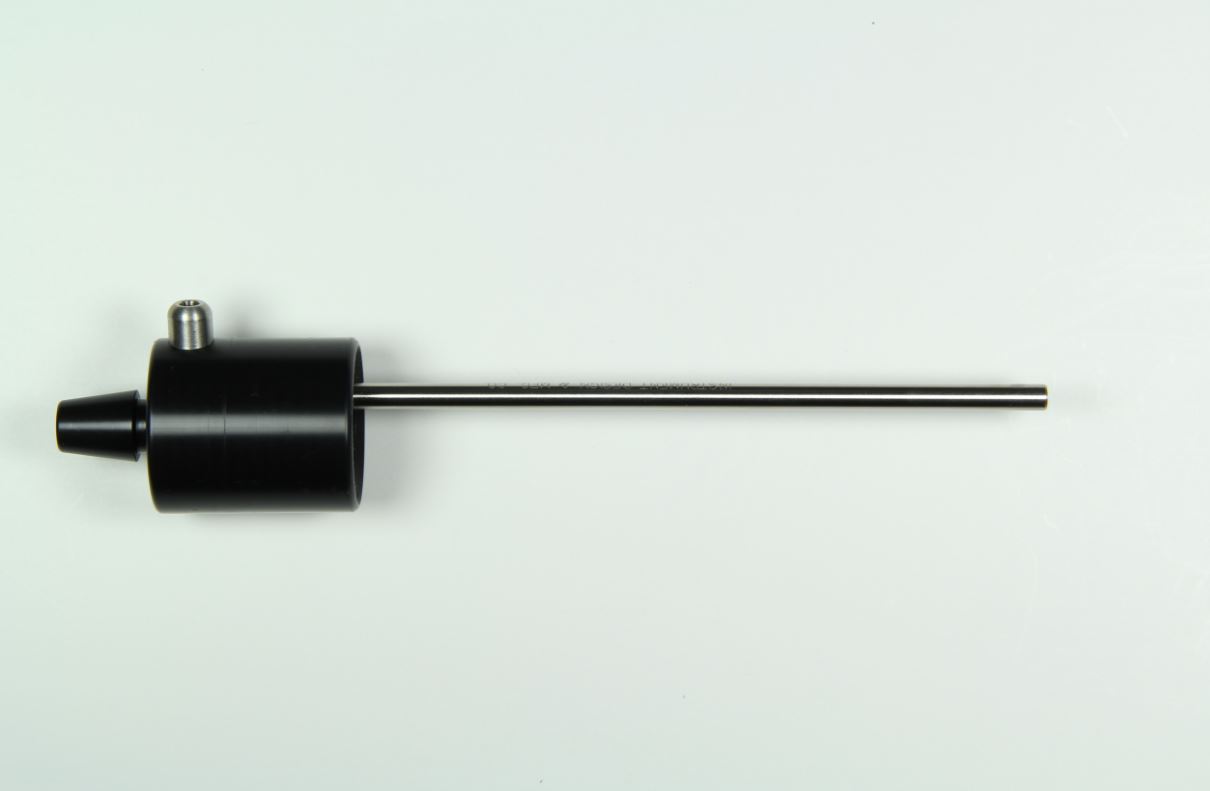

Chemical Cavity Injector

Chemical Cavity Injectors feature a high performance, lightweight delrin body and durable stainless steel button. Available in 3, 5 and 7 inch lengths.

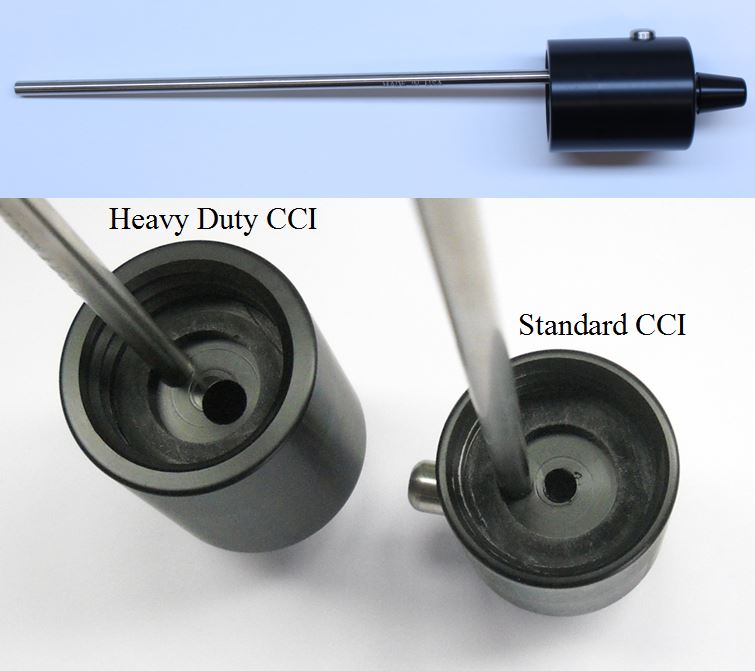

Heavy Duty Chemical Cavity Injector

The Heavy Duty Chemical Cavity Injector features a high performance Delrin body with reinforced, thicker walls. The Heavy Duty CCI uses a smaller, more comfortable stainless steel vent button for easier control. Available in 3, 5 and 7 inch lengths.

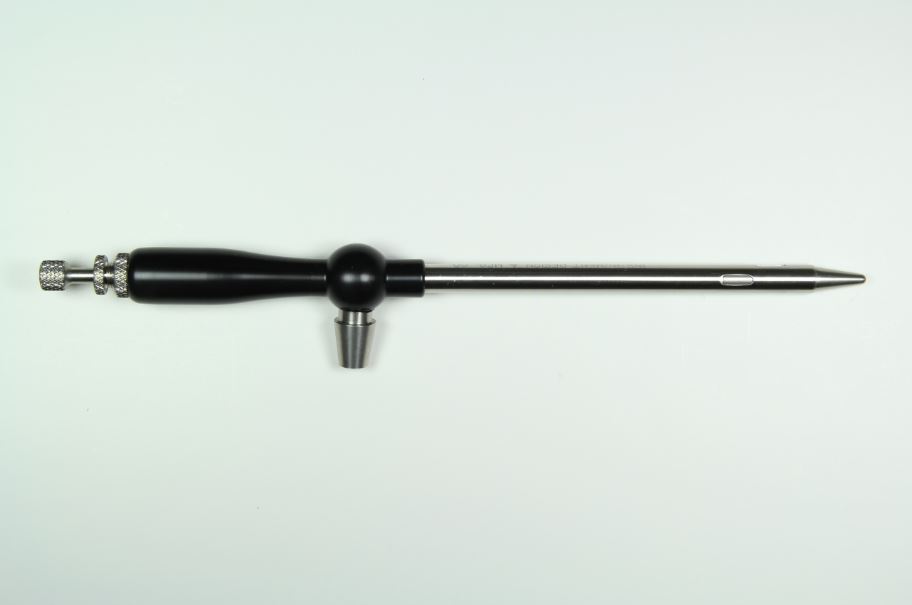

Pro Series Drain Tubes™

Pro Series Drain Tubes™ feature high performance, lightweight delrin and durable stainless steel. It features four precision machined irrigation slots and easily disassembles for cleaning.

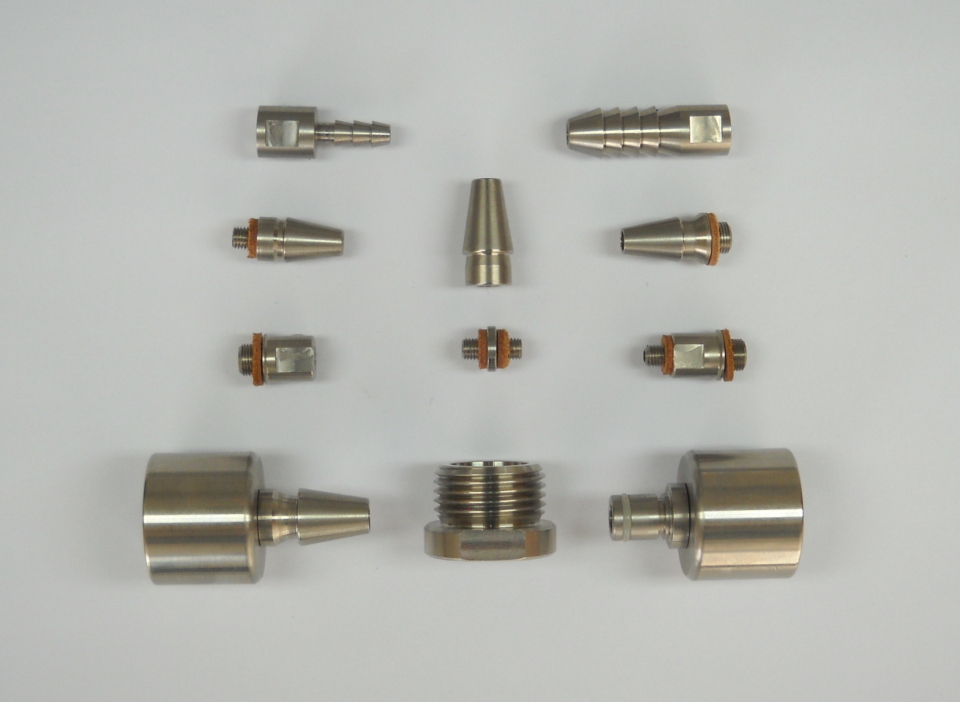

Adapters

All adapters are precision machined out of stainless steel or Delrin. We manufacture adapters for many of our instruments, such as arterial tubes and the Hypo Valve.

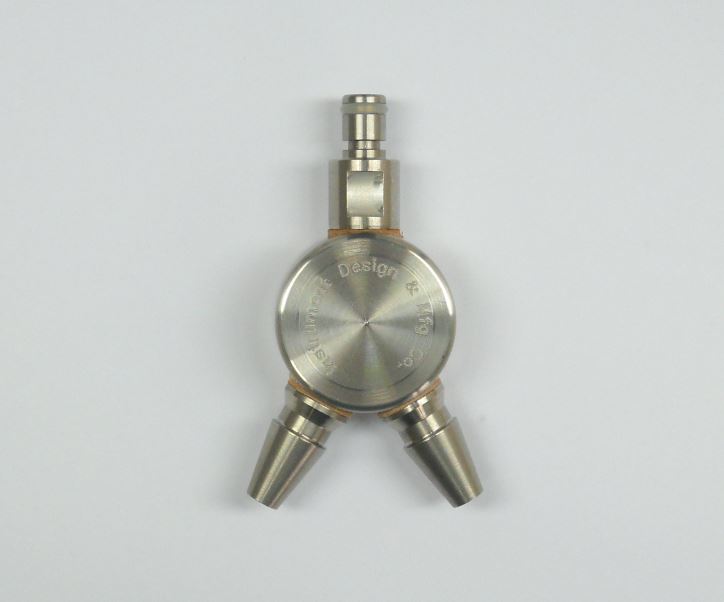

Y-Manifolds

All Y-Manifolds are precision machined out of stainless steel. Available with stainless steel arterial quick connects or stainless steel slip hubs.

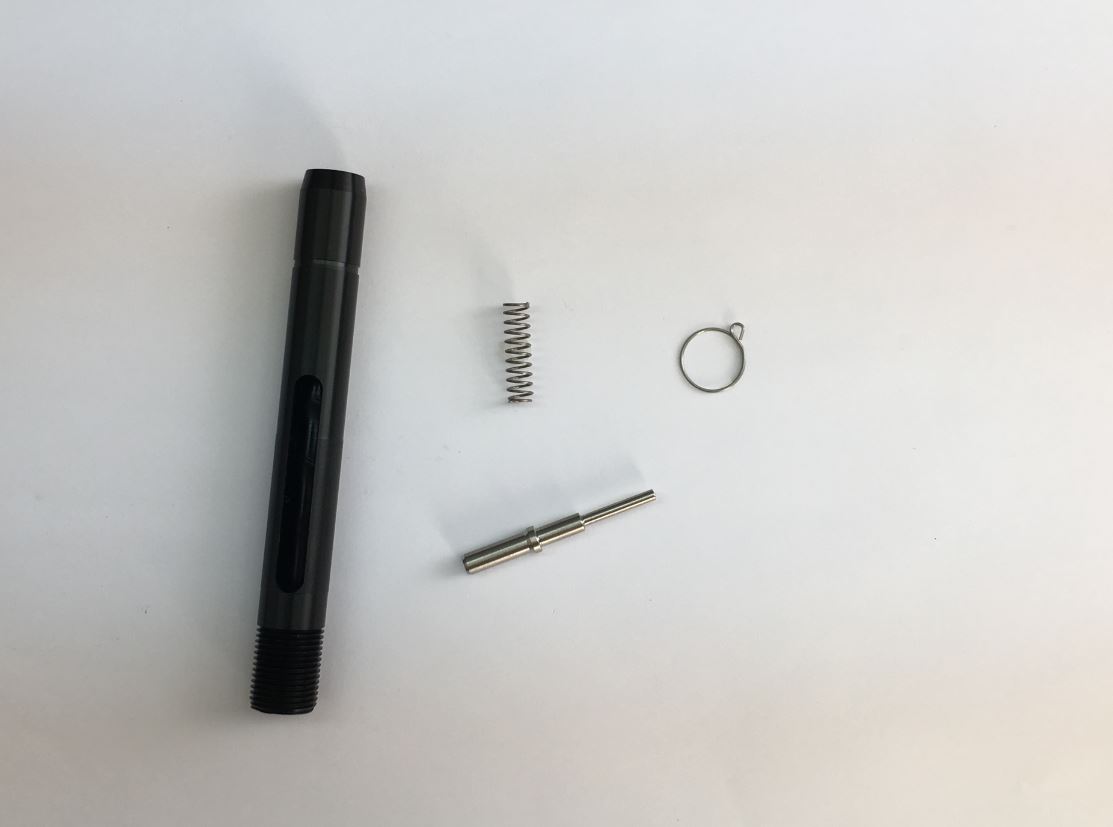

Repair Parts

Various repair parts for Instrument Design Injector Needle Drivers™

Repair Parts

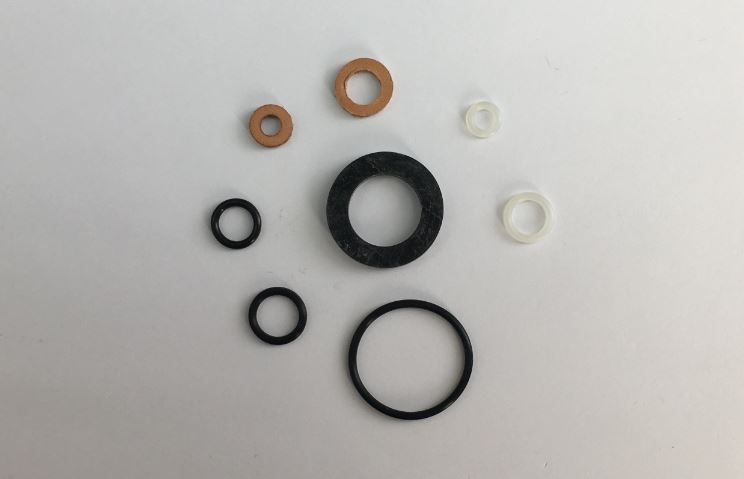

Washers and O-rings

Various washers and o-rings that we use on Instrument Design products.
